Application of Wire Mesh Belt Continuous Flow Shot Blasting Machine
Advanced features.
Wire mesh belt continuous flow shot blasting machine is suitable for flat workpieces and large and complex parts of a complete particularly, comprehensive and continuous blasting processing.This shot blasting machine configuring the 4-8 high-power "HS400" Shot blast wheel around the wheel and fixed to the chassis (respectively vertical and horizontal tilt arrangement),so that it can handle very complex, with a "pocket" or pellets are hard to reach areas of the workpiece.It can adjust its tension to achieve transmission parts. Special belt guide so that the following shot blasting wheel can only be processed by a shot blasting a belt position, which means that any untreated surface of the workpiece will be reduced to a minimum.
The device is suitable for small and medium sized workpiece surface cleaning of the mass, which is standard equipment suitable for mass production of the workpiece, widely used in casting and the automotive industry, with high production efficiency, good sealing effect, compact, easy handling member technical content .
Name | Continuous Flow Shot | Continuous Flow Shot | Continuous Flow Shot | Continuous Flow Shot | ||
| WD06 | WD08 | WD10 | WD12 | ||
width of mesh Belt(mm) | 600 | 800 | 1000 | 1200 | ||
Blast Wheel Quantity | 4 | 4 | 8 | 8 | ||
Blast Wheel Power(KW) | 11-15 | 11-15 | 11-18.5 | 11-18.5 |
Above technique parameter of the KNNJOO Mesh Belt Shot Blasting Machine for reference only,specific parameters of the technical documents .
Advanced features.
Wire mesh belt continuous flow shot blasting machine is suitable for flat workpieces and large and complex parts of a complete particularly, comprehensive and continuous blasting processing.This shot blasting machine configuring the 4-8 high-power "HS400" Shot blast wheel around the wheel and fixed to the chassis (respectively vertical and horizontal tilt arrangement),so that it can handle very complex, with a "pocket" or pellets are hard to reach areas of the workpiece.It can adjust its tension to achieve transmission parts. Special belt guide so that the following shot blasting wheel can only be processed by a shot blasting a belt position, which means that any untreated surface of the workpiece will be reduced to a minimum.
(Composition and structure characteristics of equipment)
Mainly constituded by the cleaning chamber, shot blasting, hoist, part of the screw blower, separation system, mesh belt systems, electrical systems, etc.
1.The work principle:

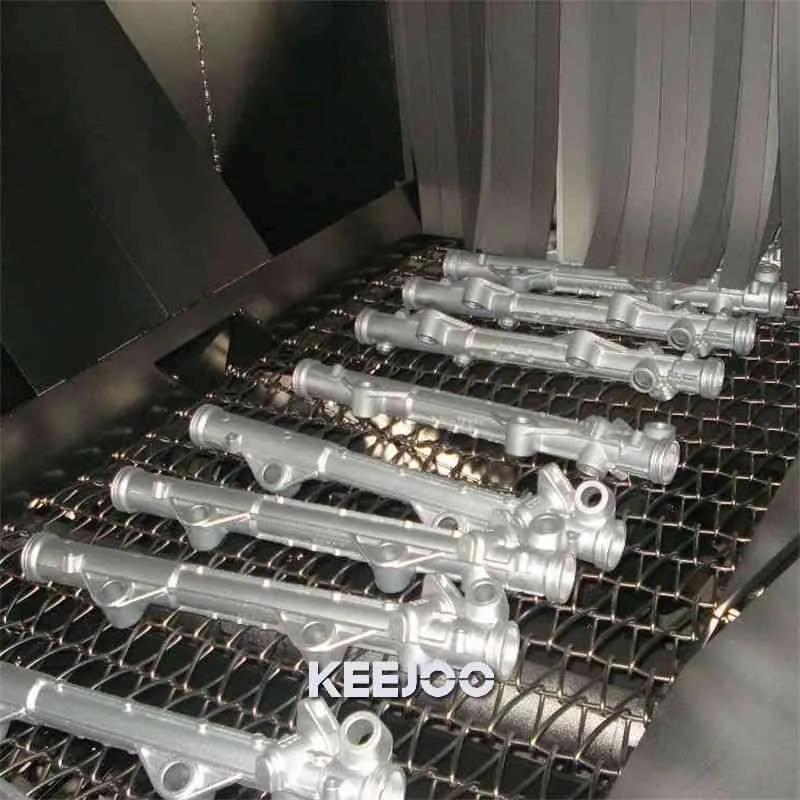

Workpiece on the belt by the continuous operation while blasting projectiles thrown high speed fan-shaped beam evenly against the surface of the workpiece, so as to achieve the purpose of cleaning up.Projectiles thrown through the circulatory system recycling use. Dusty gas from the fan to suck in dust filtration, become to clean air into the atmosphere.

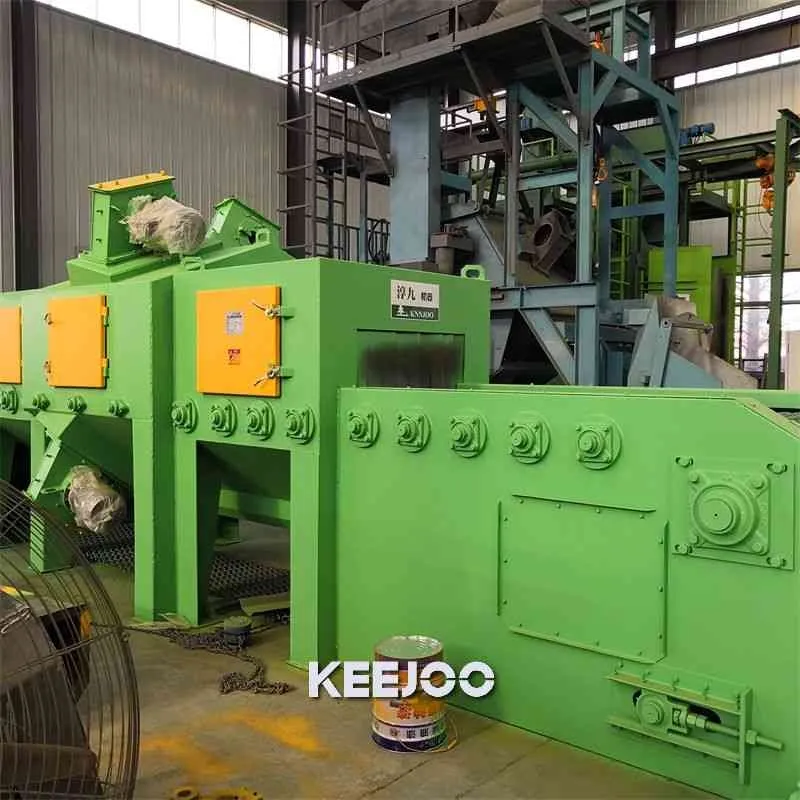

2.Wire Mesh Belt Continuous Flow Shot Blasting Machine Manufacturing Site.

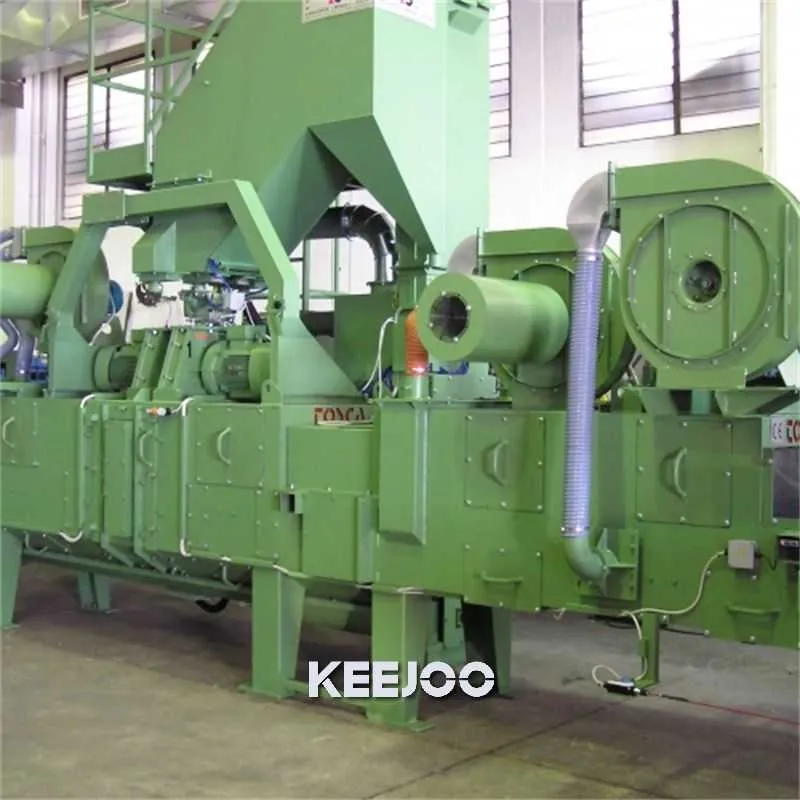

3.The machine and Technical features:
1 The master part of Machine
2 Bucket elevator
3 Dust collector
4 Blast wheels/ blasting turbine
5 Belt guiding roll,sensor
6 Rotating drum screen
7 Airwash separator
8 Blasting abrasive media hopper
9 Dust collector tubing/pipe
10 Inspection platform
11 Wire mesh belt speed governing
Continuous pass through blasting process
It allows for the integration of automatic loading and unloading system.
Available with two, four or eight blast wheels for optimal blasting results.
High process reliability with all-around blasting result.
Single-layer mesh-belt transports through the blasting chamber parallel.
It can be directly discharge finish parts through the mesh-belt roller/barrel.
