Application and Features

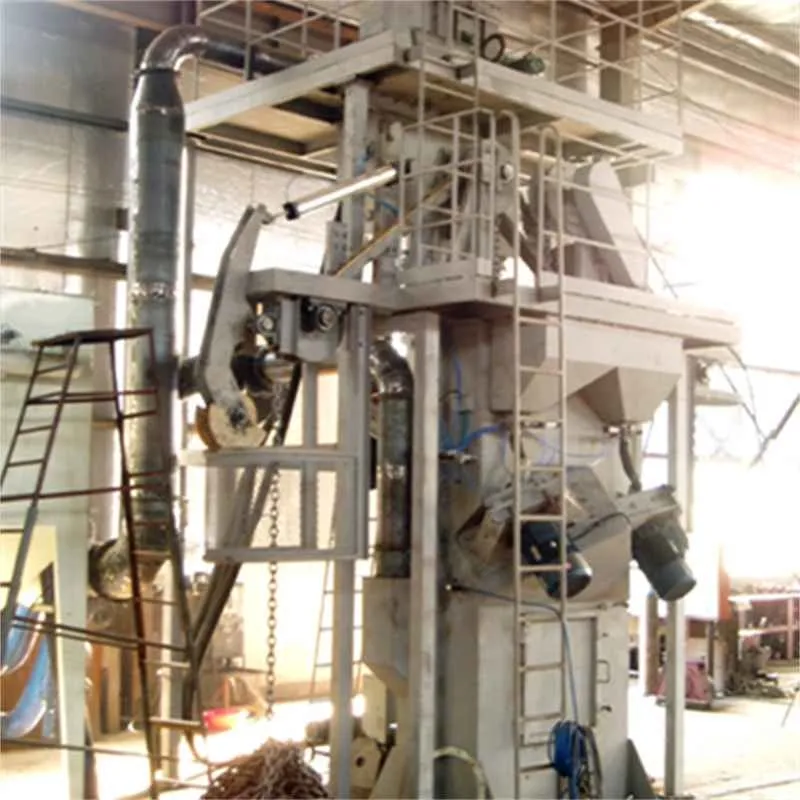

Ring chain ring chain type shot blasting machine suitable for chain, chain ring and other products for surface cleaning and blasting strengthened to remove welding slag, scale the workpiece surface; metal surface to achieve the primary, and eliminate stress and improve the effect of surface coating adhesion; and of using shot blasting process on the surface of said work to increase stress and improve fatigue strength, shot blasting to achieve the purpose of strengthening. In order to ensure strict product design, rational layout, all with three-dimensional solid simulation design:
This machine has the follows characteristics：
◆Germany WHEELBRATER hurricane turbine technology to produce high-speed projectile direct coupling blast wheel. Abrasion resistance increased by 60%, 50% reduction in maintenance costs. Special sub-pill projectile structure to maximize the utilization of 98%, only 80% of the ordinary shot blasting, in the mainland, the most technologically advanced.
◆Greatly improving the throwing of the workpiece playing effect. Safety and long life.
◆Shot blasting device body and room layout have been determined after the computer three D dynamic simulation projectile.
◆Separation means using the most advanced B-type full curtain pill residue separator, could significantly increase the separation effect.
◆The machine has automatic fault detection device.
◆Multi-level sealing, to completely eliminate the phenomenon of steel shot outside shot, good sealing effect, and long life.
◆Reduce labor intensity.
◆Dust removal system for the two standard configurations: + settling chamber needle felt rapping dust, the second stage may be a pulsed or pulse bag cleaning cartridge filter dust, dust emission concentration is less than 100 mg / m3. Such as wet plus three dust, dust emission concentration is less than 10 mg / m3.
Ring chain ring chain type shot blasting machine suitable for chain, chain ring and other products for surface cleaning and blasting strengthened to remove welding slag, scale the workpiece surface; metal surface to achieve the primary, and eliminate stress and improve the effect of surface coating adhesion; and of using shot blasting process on the surface of said work to increase stress and improve fatigue strength, shot blasting to achieve the purpose of strengthening. In order to ensure strict product design, rational layout, all with three-dimensional solid simulation design:
This machine has the follows characteristics：
◆Germany WHEELBRATER hurricane turbine technology to produce high-speed projectile direct coupling blast wheel. Abrasion resistance increased by 60%, 50% reduction in maintenance costs. Special sub-pill projectile structure to maximize the utilization of 98%, only 80% of the ordinary shot blasting, in the mainland, the most technologically advanced.
◆Greatly improving the throwing of the workpiece playing effect. Safety and long life.
◆Shot blasting device body and room layout have been determined after the computer three D dynamic simulation projectile.
◆Separation means using the most advanced B-type full curtain pill residue separator, could significantly increase the separation effect.
◆The machine has automatic fault detection device.
◆Multi-level sealing, to completely eliminate the phenomenon of steel shot outside shot, good sealing effect, and long life.
◆Reduce labor intensity.
◆Dust removal system for the two standard configurations: + settling chamber needle felt rapping dust, the second stage may be a pulsed or pulse bag cleaning cartridge filter dust, dust emission concentration is less than 100 mg / m3. Such as wet plus three dust, dust emission concentration is less than 10 mg / m3.
| No. | Item | Data | |
| 1 | Dimension of workpiece | Φ40-Φ155mm | |
| 2 | Speed direct coupling blast wheel (HEELBRATER Hurricane turbine technology) | Mode：180X Speed：3100cir/min Power：18.5kw×3 Shot amount：300Kg/min×3 | |
| 3 | Chain operation mechanism | Pull force: to be user-determined direction of travel:ÛÜ Speed：250-680 mm/min（frequency） | |
| 4 | Elevator | Lighting height 60t/h，Power5.5kw | |
| 5 | Separator | Separate:60t/h，Power:3.0kw Separate speed4 ~ 5m / s, after the separation of waste content ≤1%, scrap qualified projectile content ≤1% | |
| 6 | Screw conveyor | Throughput:60t/h，Power:4.0kw | |
| 7 | Pills valve | Pneumatic for pills ( maximum amount of 500kg / min) | |
| 8 | Rust quality level | Cleanliness: Sa2.5 (Swedish Standards) is determined by the roughness of the pellets Specifications | |
| 9 | suitable abrasive | 0.8～1.5 (melt) | |
| 10 | Emissions | Exhaust gas ≤100 mg / m3 consistent with and significantly better than the national standard | |
| 11 | First gravity sedimentation system | Settlement may be 0.1-0.5 small projectiles, projectile prevent waste being sucked out of the fan to extend the life of dust, greatly improving the environmental effect | |
| 12 | Second cleaning cartridge type dust | Total amount of wind:15200 m3/h Power:15kw | |
| 13 | Third spray dusting | Circulating pump spray process (user-owned pool) | |
| 14 | Power consume | Total power | about 80k w (Specific power to meet the requirements shall prevail) |
| Compressed air consumption | 0.5-0.6 m3/min（Projectile for pneumatic control valve） | ||
| 15 | Electric control system | Electrical boxes, buttons, cables, bridge, etc. | |
| 16 | Outline Dimension/Covers | See program general view | |
