Main parameter
| NO | Name | Unit | Parameter |
| 1 | Rotational diameter of workpiece-Height | mm | Ф3000X2500 |
| 2 | Hook system | Quantity of hook:2set Loading of hook（MAX）2000kg/hook Hook rotation can be frequency control Hook track automatic changeover | |
| 3 | Blast wheel | Quantity:4set Power :7.5kw Swedish SKF Bearings Siemens motor Siemens frequency ( Germany technology,Asia highest technology; spare parts use High chrome casting wear-resistant parts Cr28%,service life of blades about 1500 hours,service life of guard plate about 3500 hours) | |
| 4 | Shot blasting chamber | Automatic switch door, the top of the automatic sealing system, shield use the SSAB-HARDOX600 Swedish wear plate | |
| 5 | Projectile circulatory system | Double screw conveyors,Reducer use Chinese brand-name Tyrone products. | |
| 5 | Dust collector (blowback pulse dust cleaning) | Dust volume 20 mg / m3, the filter used by the US Donaldson products, Electromagnetic pulse valve selection Sino-US joint venture Shanghai dust bag accessories Products. | |
| 6 | Compressed air consumption | m3/min | ~0.8 |
| 7 | Air pressure | Mpa | 0.5-0.7 |
| 8 | Electric control system | / | Germany rittal technology,Siemens PLC,Siemens frequency,contactor use the Schneider products, detecting element use Korea Autonics products. |
| 9 | Total power | kw | ~70.0 |
The main components of technology introduction
Blast wheel
Patent No:ZL 2015 2 0702933.5
Our company took operation with THYSSENKRUP, Germany, developed a high-power direct-axis-22-75 Kw-efficient Shot Blast, breaking the European and American high-power straight-linked abrasive technology monopoly. This technology is the development of China's shot blasting machine one of the important progress.
nWith low noise, low consumption, high efficiency and other advantages
nComposite propellant areacan made the convex and concave surfaces of workpiece thoroughly cleaned.
nThe speed of shot blasting is ,
nMaterial and technology:long working life of wearing parts
nImpeller use wear-resistant alloy carburizing and use the German Schenck Schenck balancing instrument, ensure high-speed balancing of the impeller body.
Workpiece conveyor system
Hook rotation means and track

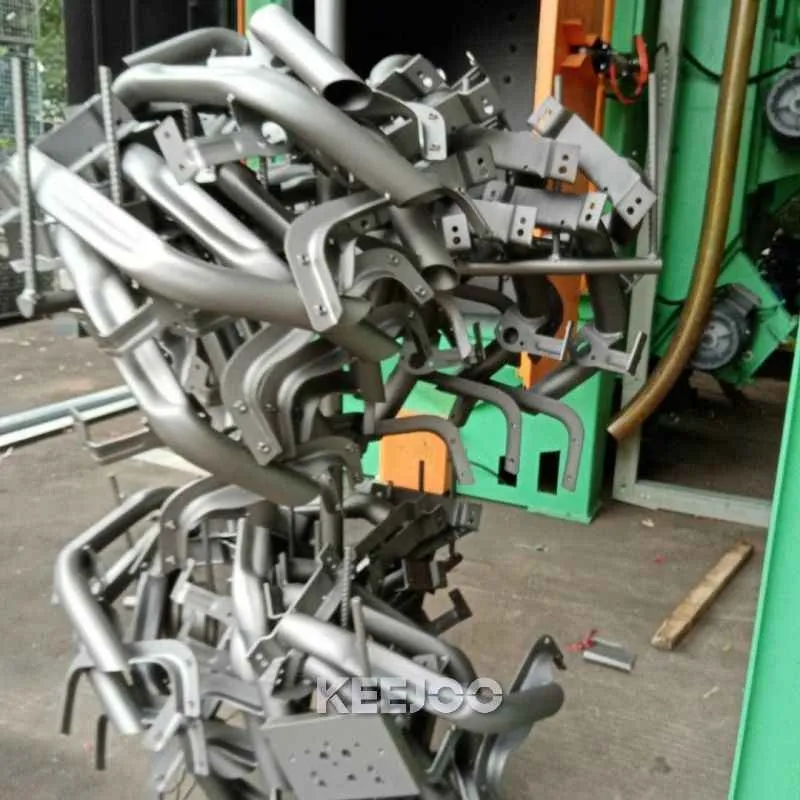

To ensure coverage of the projectile of the workpiece, the workpiece surface and the dark side of the majority of male and female to get a thorough cleaning,
Improve the efficiency of Shot blasting, Shot blasting station of the machine has a rotation mechanism may reciprocate.Rotation chain with wide-row chains, to ensure the effective engagement of the chain and sprocket. Track can be changed by air.
Qingdao KEEJOO Group is a leading manufacturer of high-end shot blasting machine in Asia, mainly manufacturing high-end shot blasting machine, shot blasting equipment, casting machinery and environmental protection equipment. The company introduced and developed more than 100 kinds of spray shotblasting machine to strengthen cleaning, more than 20 kinds of products to fill gaps in the domestic products for ThyssenKrupp, Siemens, FAW-Volkswagen, Cummins Engine, Dongfeng Motor, Weichai Fuji Heavy Industries, Tangshan Gear, Japan Aisin, France Alstom, South Korea Doosan, the United States Caterpillar and other well-known enterprises, such as the United States, Japan, the United States, , Exports to Spain, France, the United States, South Korea, Japan, Singapore, Australia, Russia and other global 49 countries in the world and domestic enjoy a high reputation and reputation.
