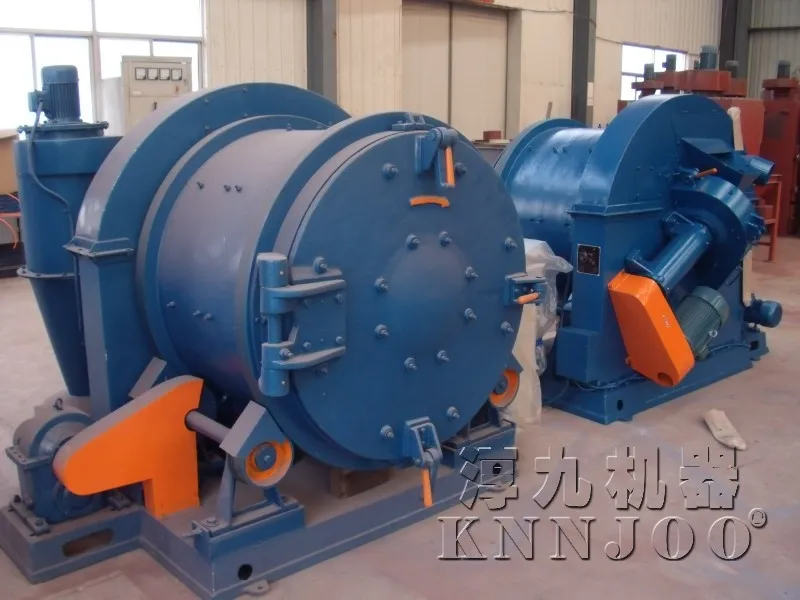

Drum type shot blasting machine is suitable for cleaning all kinds of castings and forgings that are not afraid of collision and scratch. It is an ideal equipment for cleaning residual sand and oxide scale on the surface of small heat treatment workshops. It is mainly equipped with rollers, separators, blast wheel and bucket elevator , gear motor and other components.

Drum type shot blasting machine is mainly used high-speed rotary impeller to throw the abrasive to the workpiece in the drum which is continuously turned over, so as to achieve the purpose of cleaning the workpiece, belonging to the scope of casting machinery.

It is suitable for sand removal, rust removal, descaling and surface hardening of castings and forgings up to 15 kg in various industries.

Advantage

1. Using the popular pitless pit form, saving the construction cost of pit foundation
2. The blasting chamber body and the arrangement of the blast wheel are all determined after the three-dimensional dynamic ejection simulation of the computer, so that the coverage area of the ejected abrasive flow accurately covers the surface of the workpiece, and the abrasive simultaneously throws the workpiece at various directions from the workpiece surface.
3. The use of high-ejectile cantilever centrifugal blasting machines can significantly improve the cleaning efficiency and achieve a satisfactory cleaning quality.
4. machine design concept, compact structure, easy to use and maintain.
